PRODUCT CODE : PIN482601000

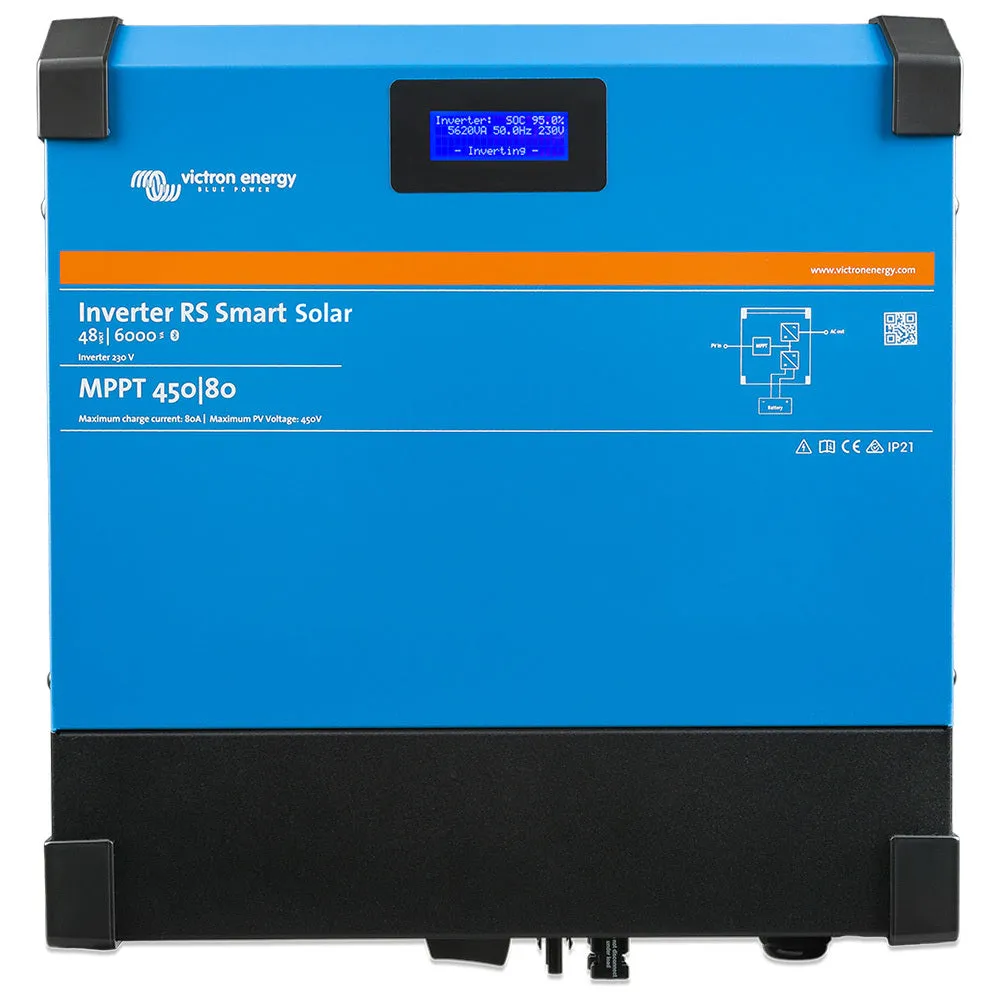

The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger. Thanks to its modern design and high frequency technology the inverter only weighs 11kg and has an excellent efficiency, low standby power, and very quiet operation.

The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the . In addition to this, the inverter has a VE.Direct and a VE.Can Port, for connection to a GX device for system monitoring.

Off Grid Solar

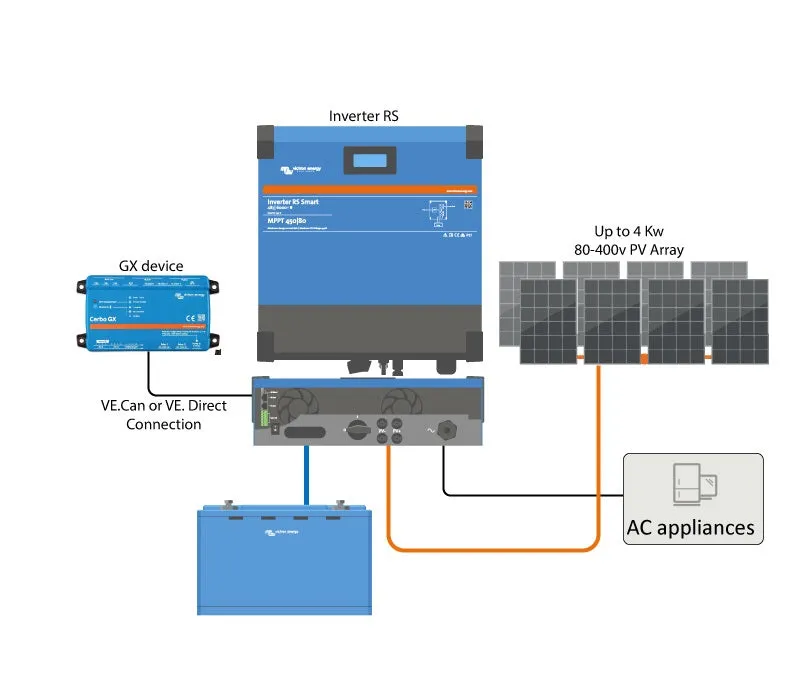

The inverter RS Smart Solar 48/6000 is a 48V 6Kva Inverter with 450 VDC 4kwp PV input. It is used in off grid solar applications where AC power is required.

Combination Of An Inverter, Bi-Directional DC-DC Converter & MPPT

An inverter produces a perfect sine wave, able to supply high powered appliances. It is supplied by a bi-directional DC DC converter, that can either charge the battery when the excess solar is available or convert from the battery when it is needed.

Wide MPPT Voltage Range

80-450VDC , with a 120VDC PV start up voltage.

Light weight, Efficient and Quiet

Thanks to high frequent technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

VE.Can and VE.Direct

For connection to a GX device for system monitoring, data logging, and remote firmware updates.

Display and Bluetooth

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with


Support for AC and DC coupled PV battery charging

The Inverter RS supports the connection of AC coupled PV inverters on the AC output up to 6kVA, and a total battery charging capacity of up to 100A. Frequency Shift Power Control is enabled out of the box, without the need for configuration, reducing installation time.

Built In PV Isolator

Both parallel PV strings connected to the MC4 plugs can be safely isolated with the large built-in switch on the bottom of the unit.

I/O Connections

Programmable relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the .
