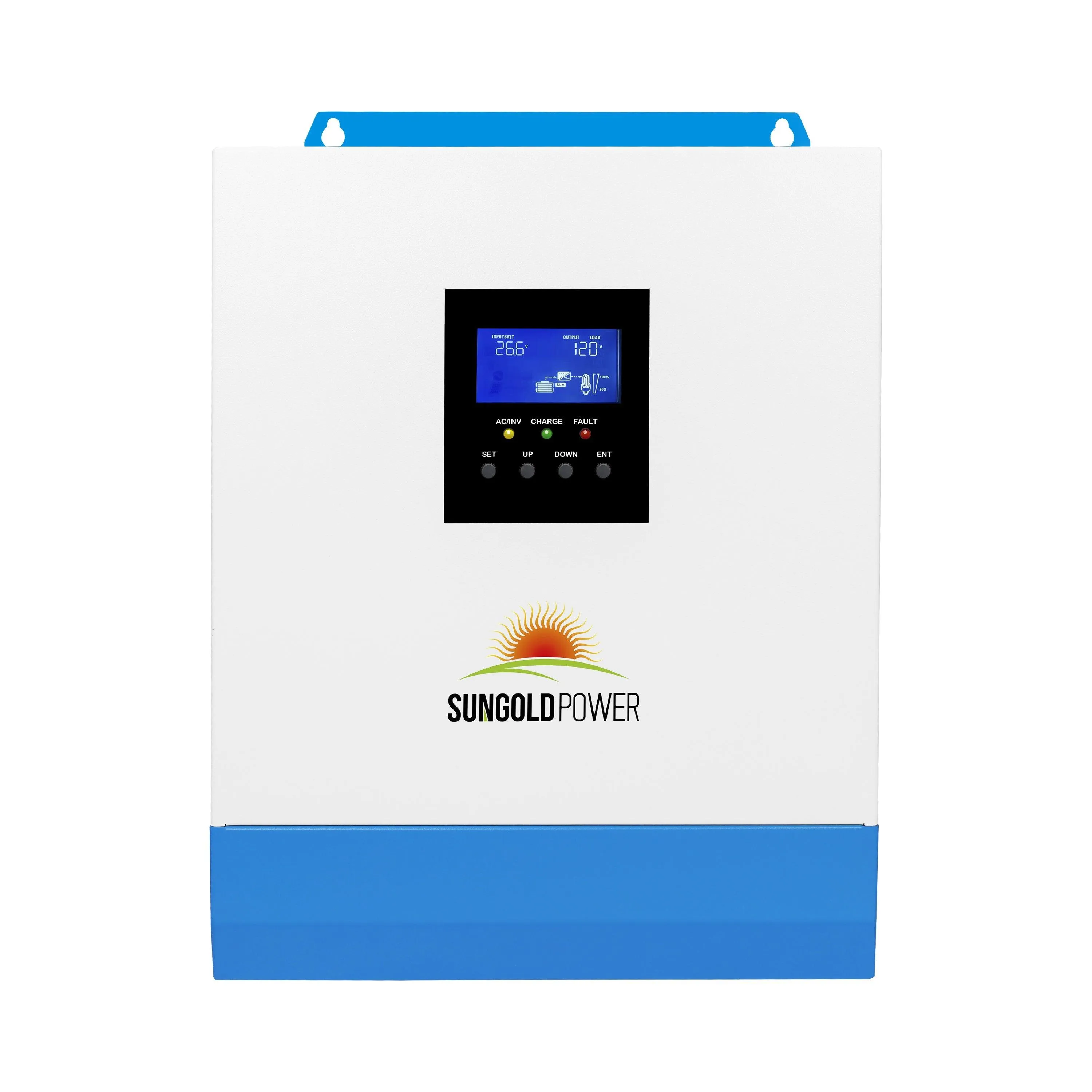

3000W 24V Solar Inverter Charger

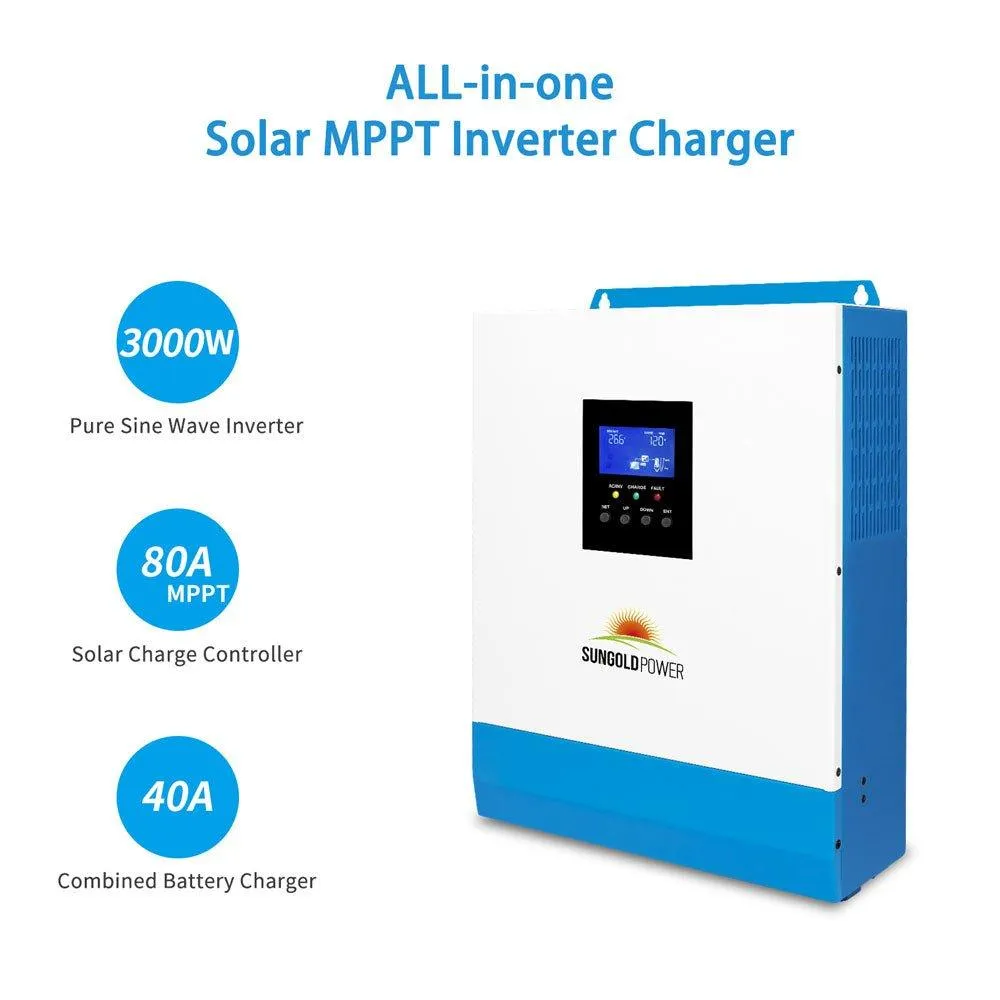

Unlock the power of the sun with the 3000W 24V Solar Inverter Charger—a revolutionary all-in-one solution designed to meet your energy needs with unmatched efficiency and reliability. This advanced inverter combines a 3000 Watts pure sine wave inverter, an 80A MPPT solar charger, and a 40A AC battery charger into one compact unit, ensuring you have a continuous power supply from both solar energy and the utility grid. Whether it's a sunny day or an overcast one, you can rest assured knowing your devices will remain powered.
Main Advantages:

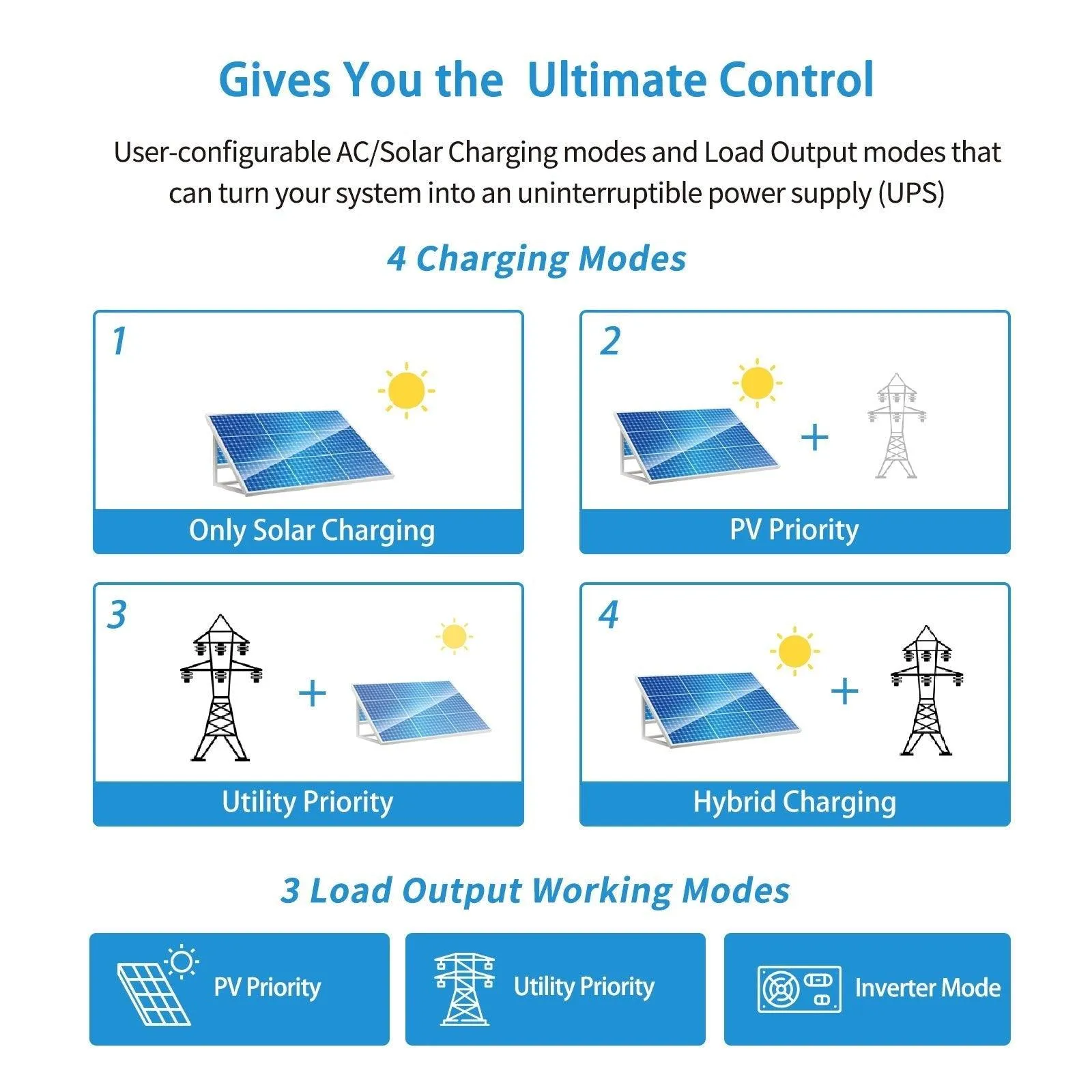

- Versatile Charging Modes: Choose from four different charging modes—AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging—tailored to your specific energy needs.

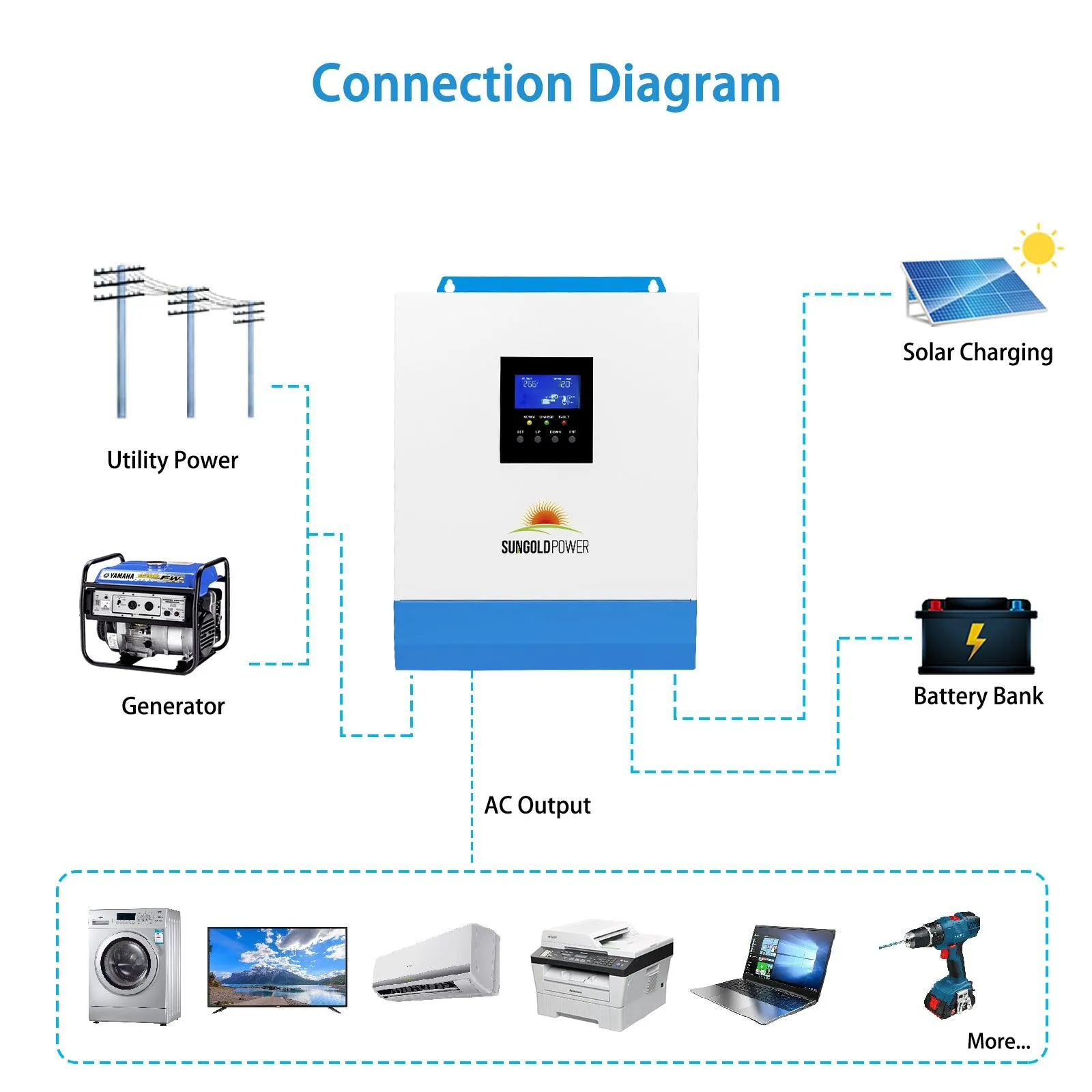

- Uninterrupted Power Supply: Experience seamless power with a quick 10ms switch to battery supply in case of main or generator disconnection, ensuring your electronics won’t shut down unexpectedly.

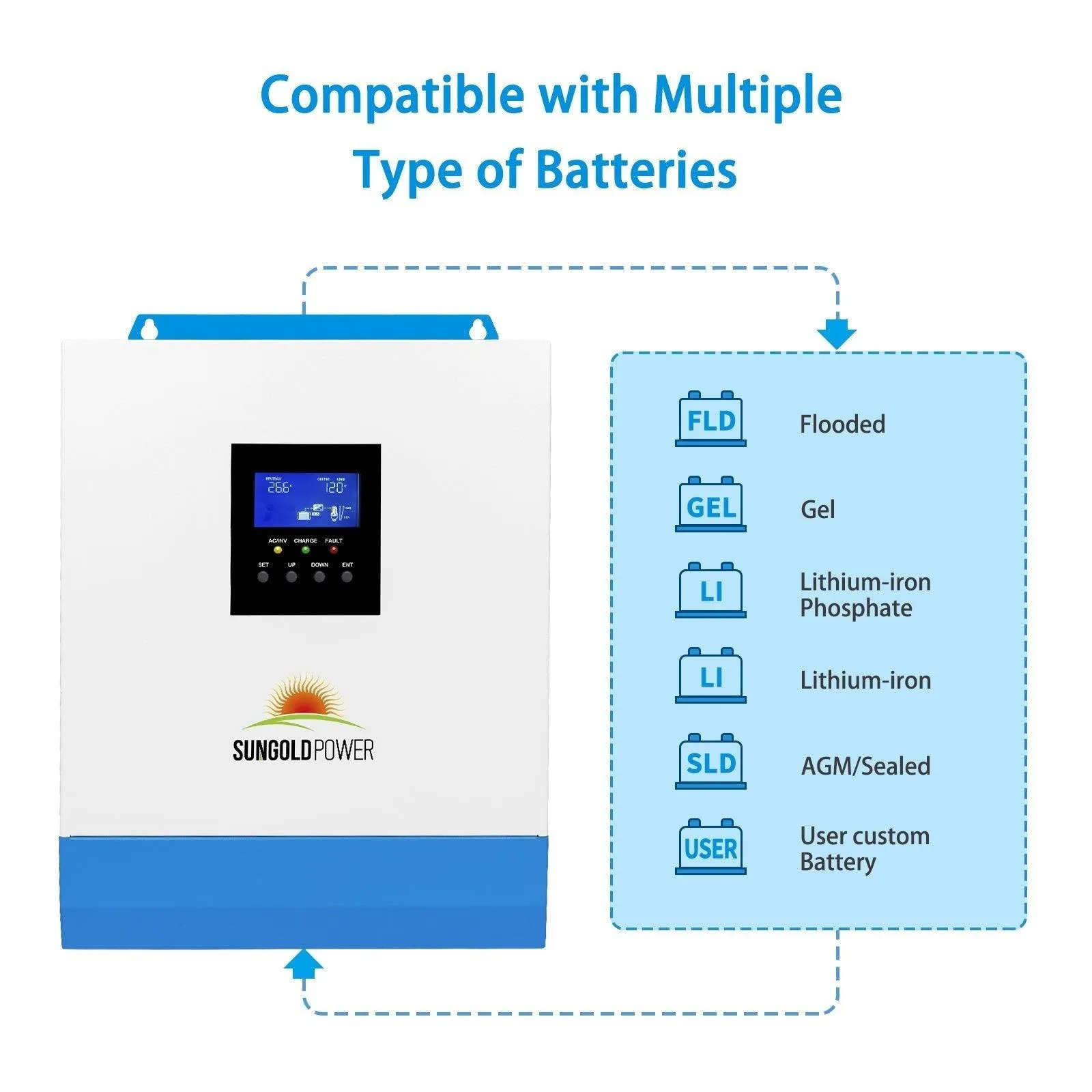

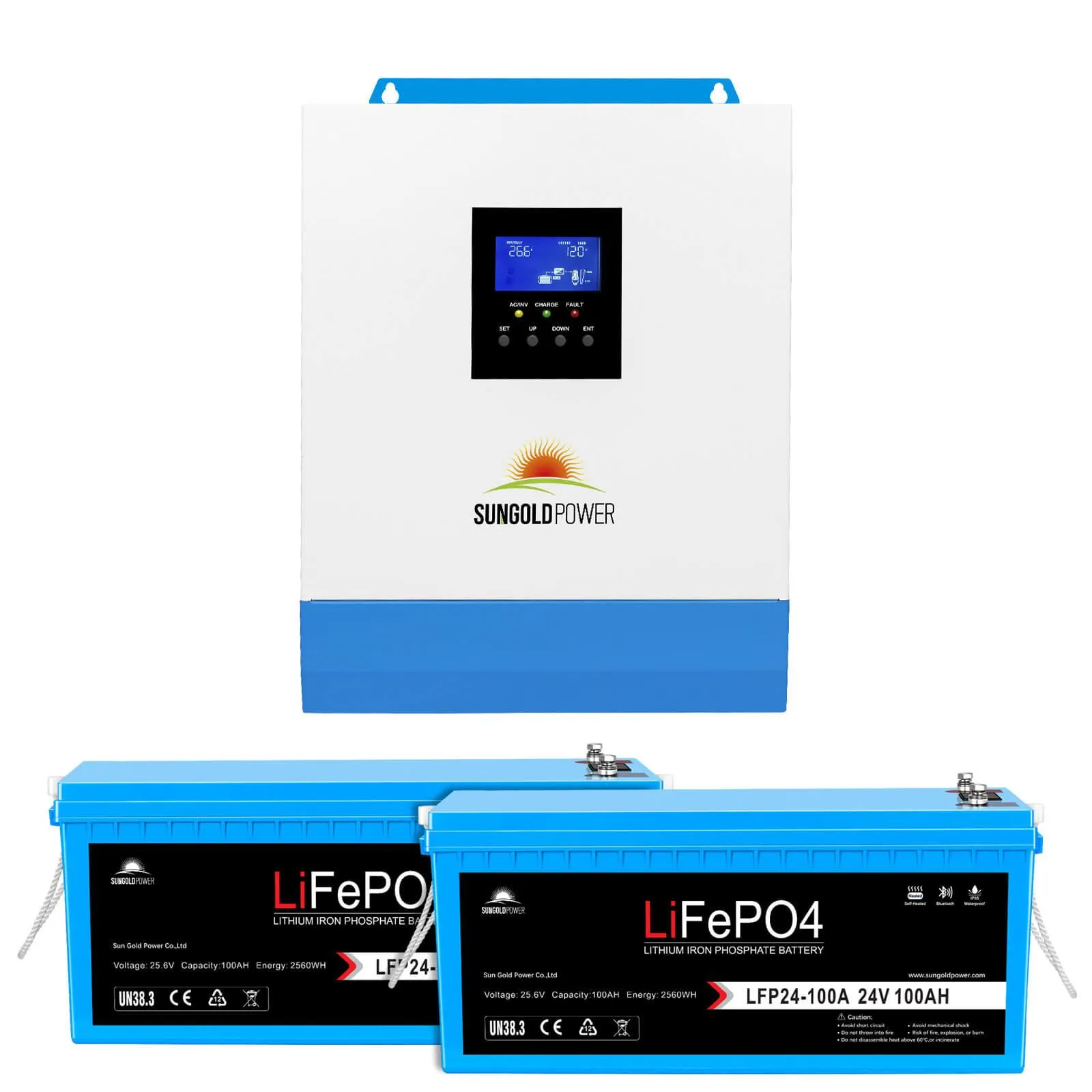

- Universal Battery Compatibility: This inverter charger supports various battery types, including 24V AGM/Sealed, Gel, Flooded, and Lithium batteries, with a user mode for custom inputs, giving you flexibility and choice.
Why This Product is Essential:
In the age of renewable energy, the 3000W 24V Solar Inverter Charger is not just an option; it’s a necessity. It empowers you to harness solar energy efficiently while also providing reliable backup power, making it perfect for off-grid living, emergency situations, or simply reducing your carbon footprint. Don’t wait for the next power outage—ensure you are always connected and powered!
Specifications and Guides:
- Features:
- Built-in 60A MPPT solar charge controller
- Maximum PV input: 1400W
- 40A Smart AC charger
- High-frequency transformer-less compact design
- Pure sine wave AC output (120V) with 50Hz/60Hz switch
- Optional WiFi/GPRS remote monitoring (extra cost)
- Overload, short circuit, and over-discharge protection

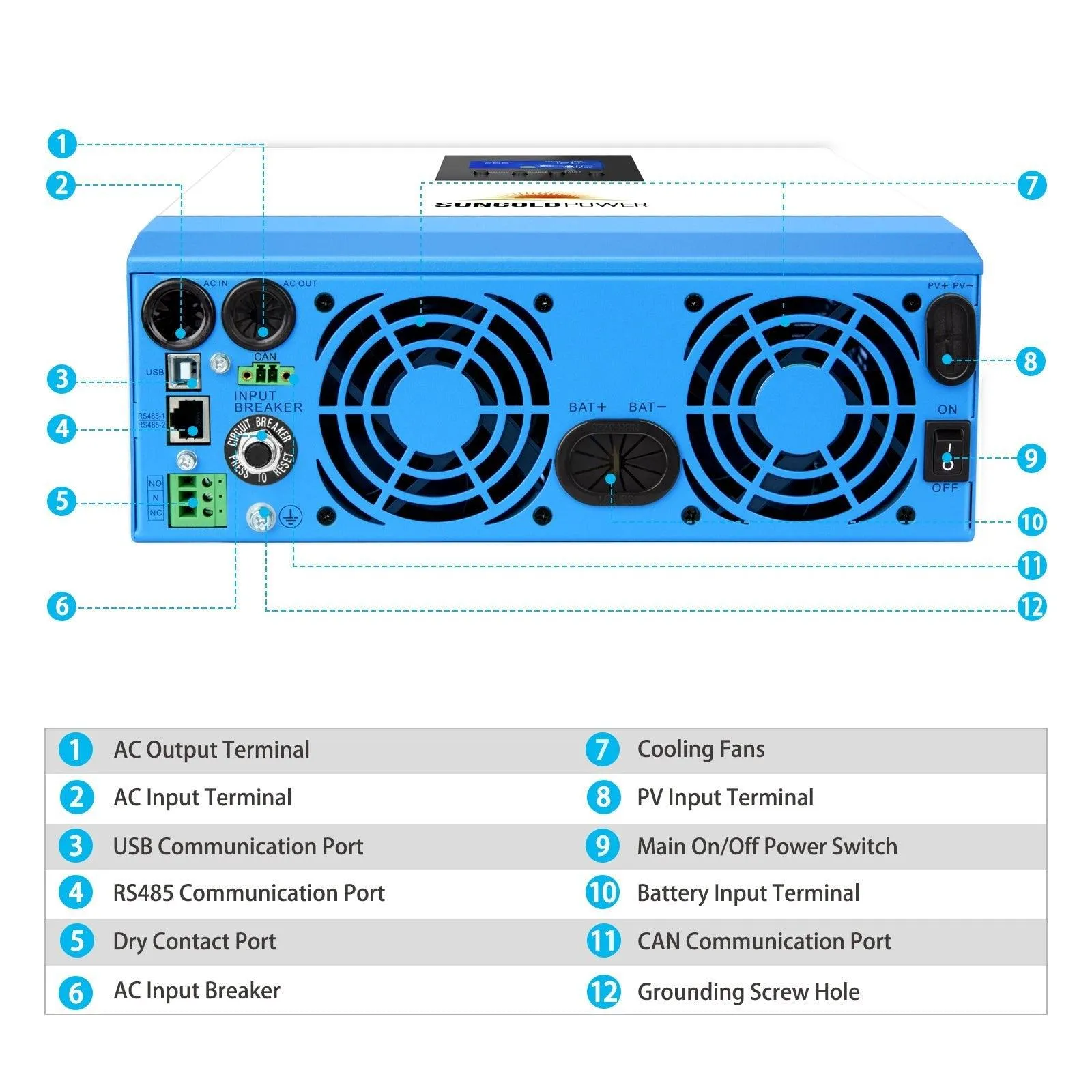

- Auto-start generator capabilities (Dry Contacts for signal delivery)
- Manuals:
- Guides:
- Specifications:
- Output: Pure Sine Wave
- Surge Rating: 9000W (for 20 seconds)
- Peak Power: 4500VA
- Output Voltage: 120VAC, 50HZ/60HZ
- Input Voltage / Rated Battery: 24VDC (minimum start-up voltage: 22V)
- Bypass Breaker Current: 40A
- Idle Power: 50W
- MPPT Maximum Input Power: 1400W
- PV Charging Current: 0-60A
- PV Open Circuit Voltage: 100V
- Pv operation voltage range: 30-100VDC
- MPPT Voltage Range: 30-85VDC
- Recommended wire: 8 AWG
- Charging Current: 40A
- Charging Voltage Range: 20-33VDC
- Noise Level: ≤60dB
- Operating Temperature Range: 5°F ~ 131°F / -15°C ~ 55°C

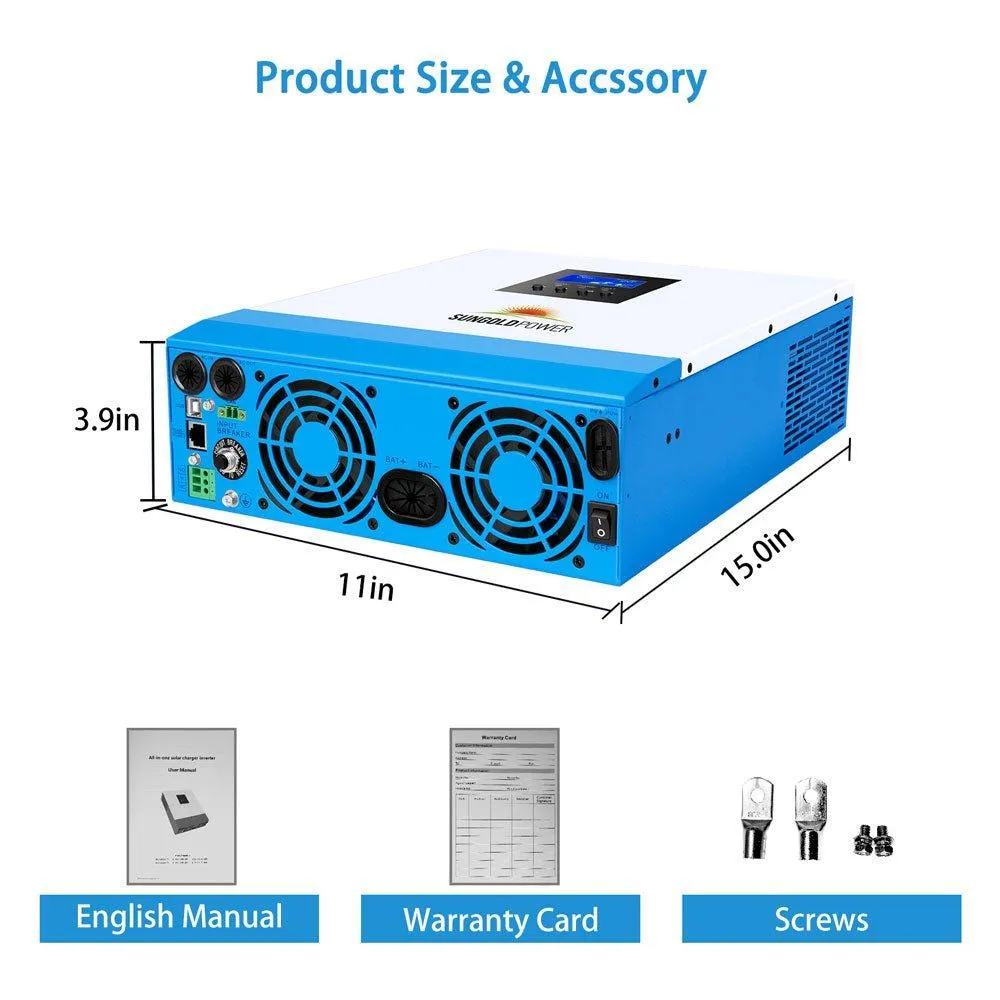

- Size: 378mm x 280mm x 103mm
- Net Weight: 6.8kg
