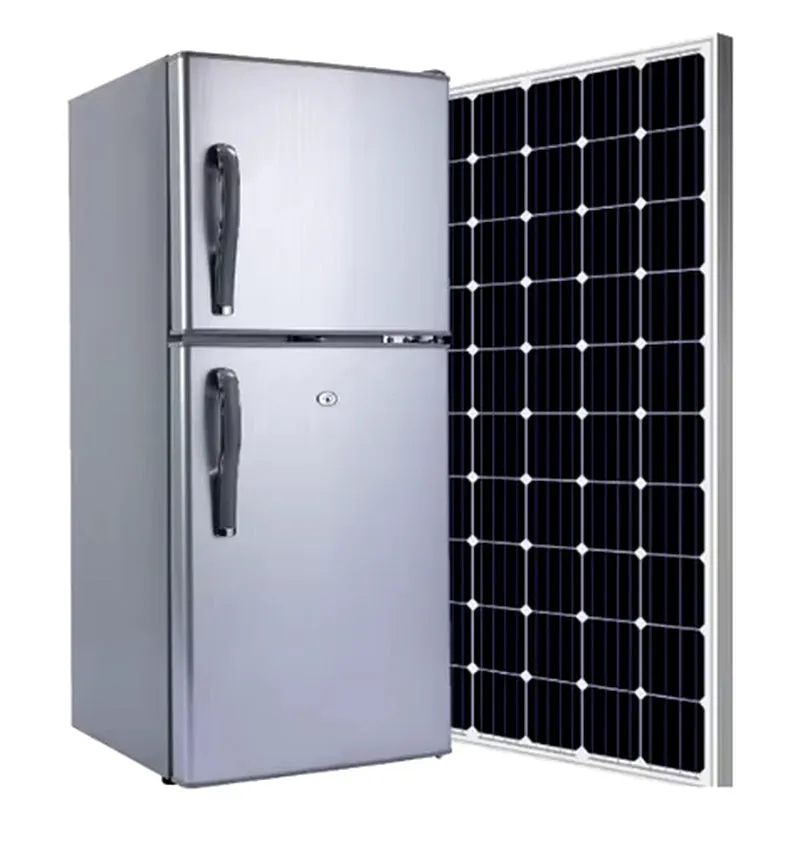

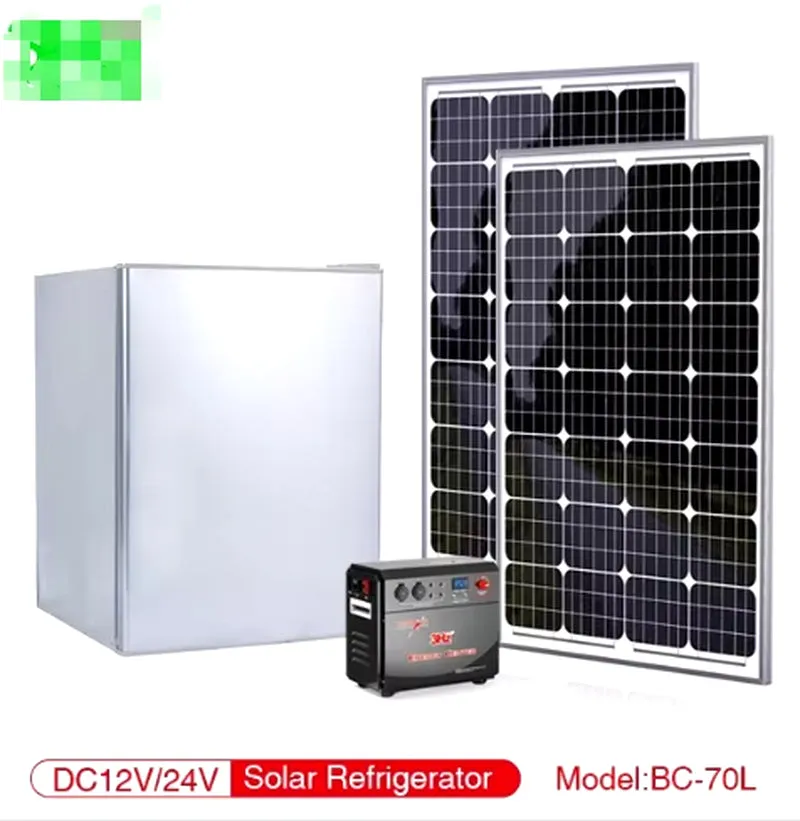

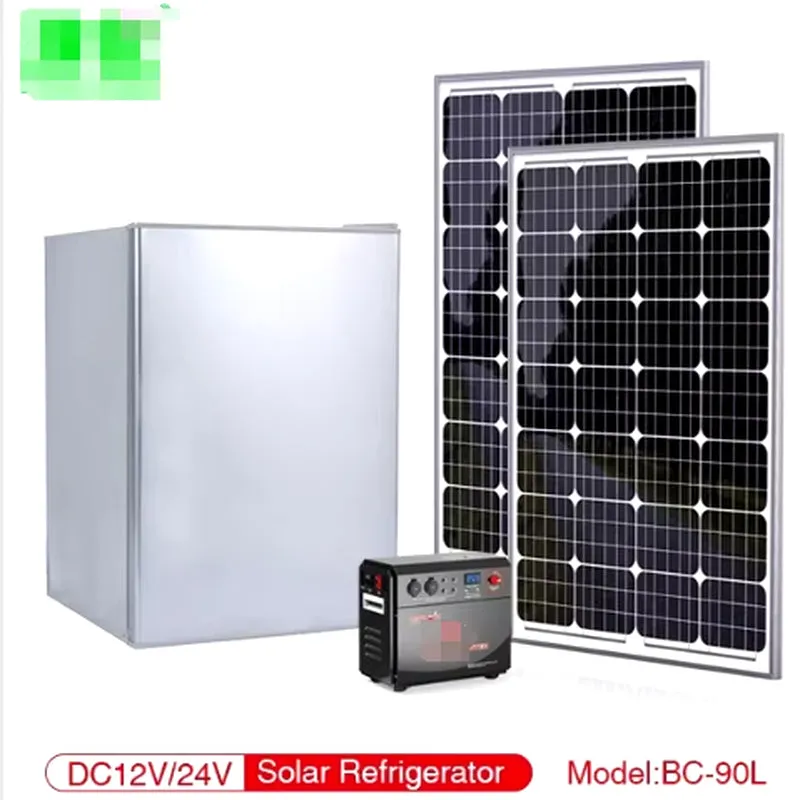

A solar-powered refrigerator is a refrigerator which runs on energy directly provided by solar, and the system include photovoltaic panels,solar controller,solar battery and refrigerator.Solar-powered refrigerators are able to keep perishable goods such as meat and dairy cool in hot climates, and are used to keep much needed vaccines at their appropriate temperature to avoid spoilage.Solar-powered refrigerators may be most commonly used in the developing world to help mitigate poverty, supplement the lack of electricity and energy conservation.
Main Features
1. Energy saving, they are energy efficient and can save you money on your power bill.
2. Adjustable leveling legs design, prevent the fridge from leaning due to uneven floor/ground.
3. DC compressor, energy saving.
Model |
BC-50 |
BC-70 |
BC-90 |
BC-178 |
Input Voltage |
12V/24V |
12V/24V |
12V/24V |
12V/24V |
Capacity |
50Liter |
70Liter |
90Liter |
178Liter |
Product Size(mm) |
470*445*500 |
450*445*695 |
480*445*855 |
550*570*1395 |
Carton Size(mm) |
500*490*520 |
500*490*720 |
500*465*880 |
570*600*1455 |
N.W./G.W.(KG) |
16/18 |
19/20 |
25/27 |
44/49 |
Temperature Range |
1-10 for fridge,<=-18 for freezer |
1-10 for fridge,<=-18 for freezer |
1-10 for fridge,<=-18 for freeze |
1-10 for fridge,<=-18 for freezer |
Loading Quantity(40HQ) |
573pcs |
362pcs |
230pcs |
142pcs |
Model |
BCD-108 |
BCD-118 |
BCD-142 |
BCD-178 |
BCD-198 |
BCD-218 |
BCD-268 |
BCD-295 |
Input Voltage |
12V/24V |
12V/24V |
12V/24V |
12V/24V |
12V/24V |
12V/24V |
12V/24V |
12V/24V |
Capacity |
108Liter |
118Liter |
142Liter |
178Liter |
198Liter |
218Liter |
268Liter |
295Liter |
Freezer |
27L |
48L |
39L |
39L |
80L |
45L |
52L |
80L |
Product Size(mm) |
450*440*970 |
450*450*1140 |
455*455*1270 |
555*545*1300 |
520*550*1515 |
550*570*1400 |
550*575*1660 |
540*620*1733 |
Carton Size(mm) |
510*520*1005 |
500*550*1220 |
530*510*1350 |
575*585*1350 |
560*600*1550 |
575*600*1450 |
575*600*1700 |
575*648*1740 |
N.W./G.W
(KG)
|
28/30 |
34/38 |
36/40 |
41/45 |
43/47 |
45/49 |
53/58 |
46/51 |
Temperature Range |
1-10 degree for fridge,<=-18 for freezing |
1-10 degree for fridge,<=-18 for freezing |
1-10 degree for fridge,<=-18 for freezing |
1-10 degree for fridge,<=-18 for freezing |
1-10 degree for fridge,<=-18 for freezing |
1-10 degree for fridge,<=-18 for freezing |
1-10 degree for fridge,<=-18 for freezing |
1-10 degree for fridge,<=-18 for freezing |
Loading
Quantity
(40HQ)
|
305pcs |
265pcs |
240pcs |
160pcs |
136pcs |
136pcs |
108pcs |
98pcs |
Model |
BCD-115T |
BCD-125T |
BCD-198T |
Input Voltage |
12V/24V |
12V/24V |
12V/24V |
Capacity |
115Liter |
125Liter |
198Liter |
Product Size(mm) |
410*450*1105 |
635*405*1025 |
500*560*1590 |
Carton Size(mm) |
425*485*1175 |
690*465*1095 |
547*590*1650 |
N.W./G.W.(KG) |
24/25.5 |
26/27.5 |
48/52 |
Temperature Range |
0~10 degree for cooling, -8~0 for light freezing, <=-18 degree for freezing |
0~10 degree for cooling, -8~0 for light freezing, <=-18 degree for freezing |
0~10 degree for cooling, -8~0 for light freezing, <=-18 degree for freezing |
Loading Quantity(40HQ) |
342pcs |
235pcs |
124pcs |
Precautions
1.Avoid installation locations in direct sunlight, or next to stoves, heating, or similar heat sources.
2.The floor at the installation location should be level and flat. Install the device a sufficient distance from the wall so that the lid can open and close unhindered.
3.Do not cover the gap between the lower edge of the cabinet and the floor, because the chiller must be provided with cooling air.
